Executive Summary

Conceptual design study for an ultra-efficient blended-wing-body (BWB) commercial transport named "Manta", focused on configuration trades, propulsion-airframe integration, and performance-driven sizing. The design targets a 7,400 nmi long-haul route carrying 250 passengers at Mach 0.85, significantly improving upon traditional Tube and Wing (TAW) architectures.

Design Optimization & Analysis

Gradient-Free Optimization: Utilized Particle Swarm Optimization (PSO) via Python to maximize cruise L/D, improving the baseline from 24.85 to an optimized 25.30 while satisfying strict material yield stress and stability constraints.
Sensitivity Analysis: Conducted a Monte Carlo simulation using Latin Hypercube sampling to map the design space, revealing that aspect ratio has the greatest influence on L/D, while chord length drives cost per seat-mile.
Stability & Control: Implemented a digital Fly-By-Wire (FBW) active control system to counteract the inherent dynamic instabilities of the reflexed center body and outer wing sections.

Key Engineering Decisions

Cabin Architecture: A triple-aisle (2-4-4-2) main cabin configuration housed within a PRSEUS (Pultruded Rod Stitched Efficient Unitized Structures) reinforced fuselage to handle asymmetric internal pressurization.
Propulsion Integration: Twin GEnX-1B high-bypass turbofan engines mounted on the aft upper-surface to maximize boundary layer ingestion (BLI) and provide acoustic shielding.
Materials: Carbon Fiber Reinforced Polymer (CFRP) and High Modulus Carbon Fiber used for primary lifting structures to minimize empty weight.

Technical Specifications

Passenger Capacity	250 PAX
Max Takeoff Weight	1,435,400 N
Range	7,400 NMI
Cruise Mach / Altitude	Mach 0.85 / 40,000 ft
Wingspan (Code E gate limit)	64.7 m
Cruise L/D	25.30
Cost per Available Seat Mile (CASM)	$0.0873
Powerplant	2x GEnX-1B

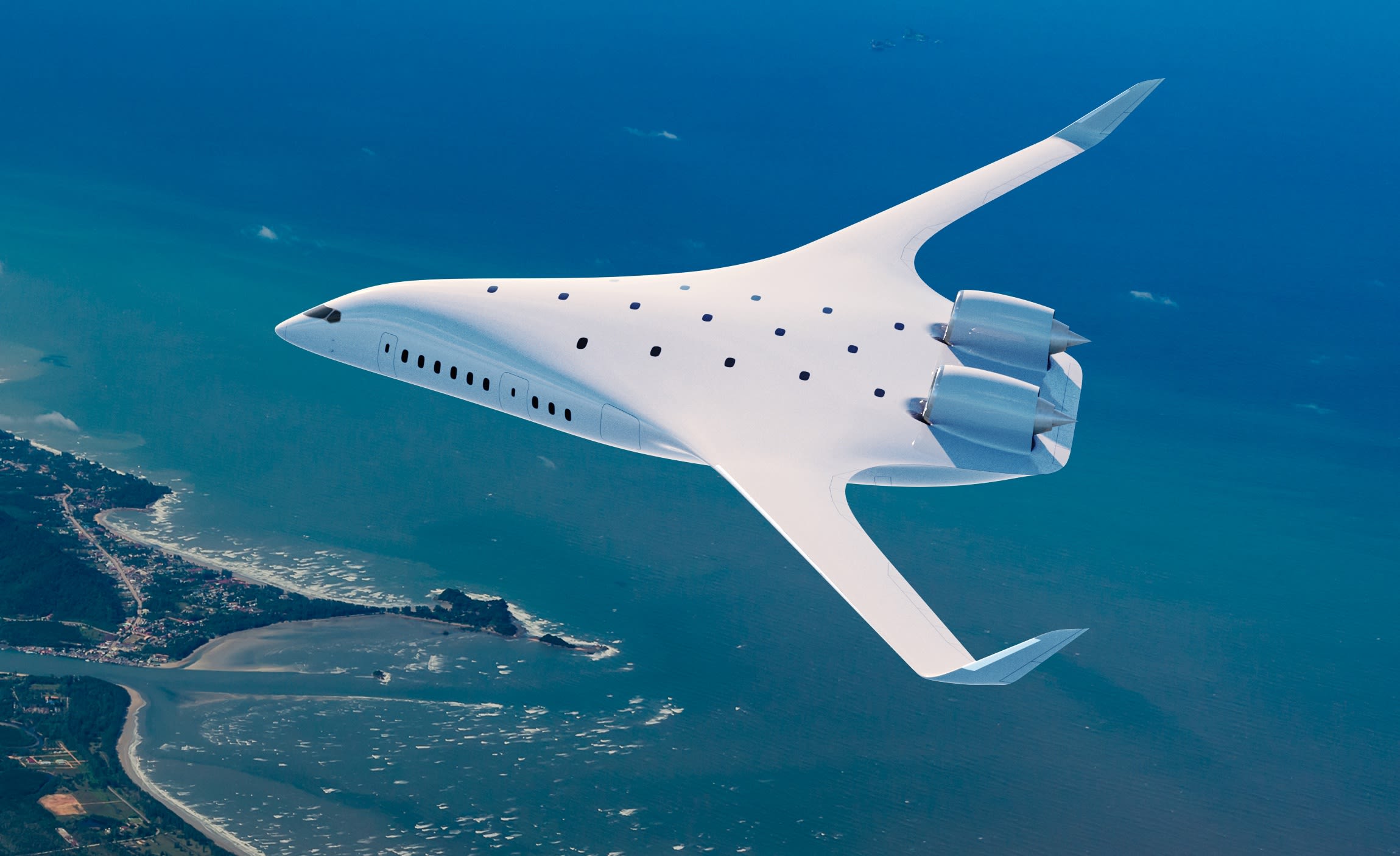

// HRD-01

BWB Airliner Concept "Manta"

Ultra-efficient commercial aircraft concept targeting Mach 0.85.

View Report & Model →

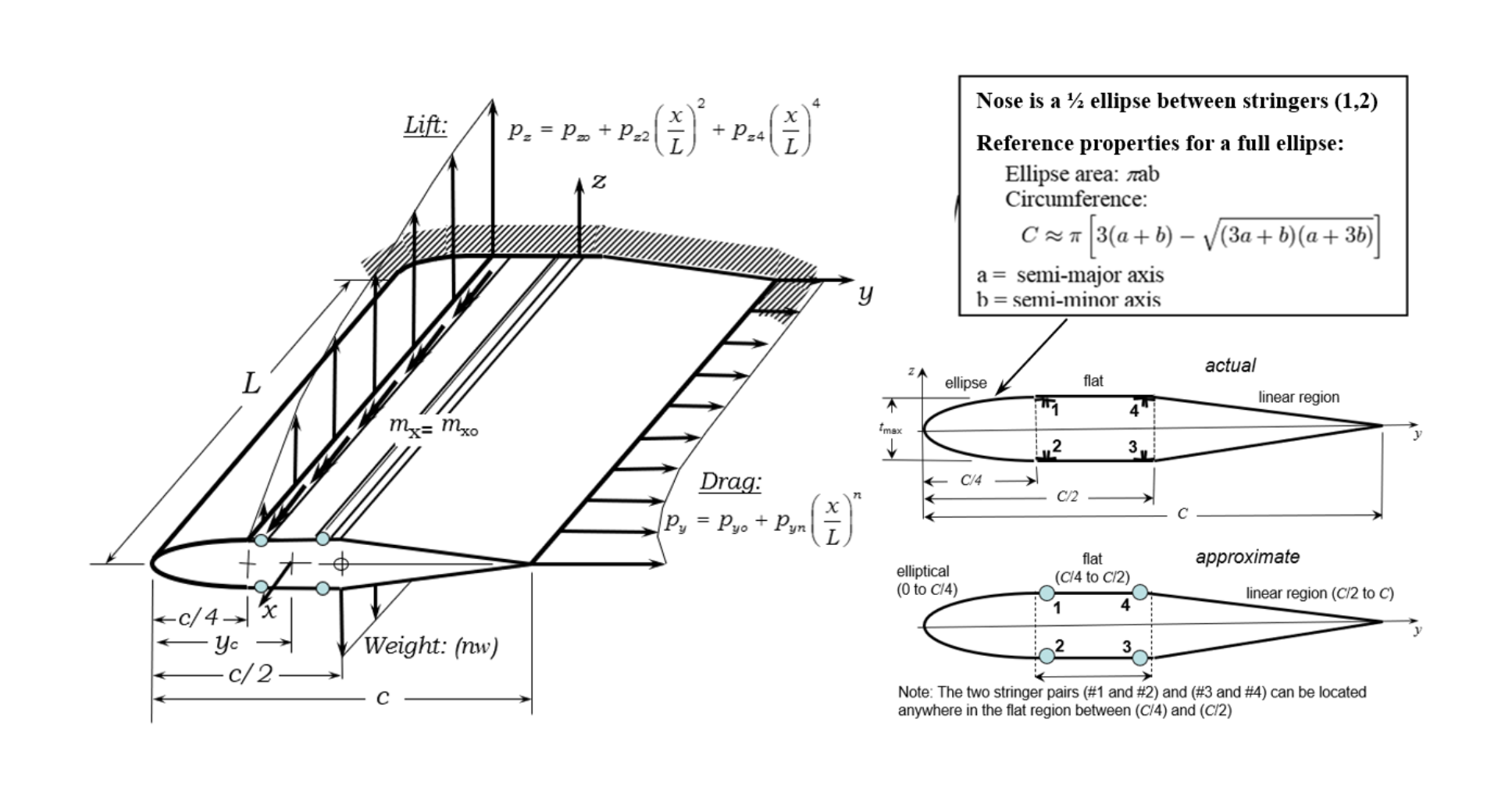

function [name, PID, dataOut1, dataOut2] = Wing_Analysis_Function(dataIn);
% + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + +
% +
% +  SE-160A:  Aerospace Structural Analysis I
% +
% +  Project: (2) Wing Analysis
% +
% +  Title:   Wing_Analysis_Function
% +  Author:  Student Name
% +  PID:     Student PID
% +  Version: (01) 02/14/2025
% +           (02) 02/22/2025
% +
% +  This function is the primary analysis function for the wing analysis
% +  program.  All of the input data is brought into the function using
% +  "dataIn". Next all the calculations are performed.  Finally, the
% +  calculated results are written to "dataOut1" and "dataOut2", where
% +  these two data sets are sent to the main program (p-code) where it is
% +  written and plotted in an Excel output file.
% +
% +  SUMMARY OF WING ANALYSIS
% +
% +  A) SECTION PROPERTIES
% +     A.1) Modulus Weighted Section Properties (yc, zc, EA, EIyy, EIzz, EIyz)
% +     A.2) Torsion Constant (GJ)
% +     A.3) Shear Center Location (ysc, zsc)
% +     A.4) Total Half Span Wing Weight (lb)
% +
% +  B) LOADS
% +     B.1) Concentrated Loads (Px, Py, Pz, Mx, My, Mz)
% +     B.2) Distributed Aerodynamic Loads (lift, drag, moment)
% +     B.3) Maneuvering Loads (distributed weight)
% +     B.4) Wing Root Reactions - Axial, Shear, Torque, and Moment
% +     B.5) Distributed Wing Internal Axial, Shear, Bend Moments, Torque
% +
% +  C) INTERNAL STRESSES
% +     C.1) Wing Root Axial Stress (sxx) and Shear Stress (txs)
% +     C.2) Allowable Stress, and Root Margin of Safety
% +     C.3) Distributed Wing Axial Stress (sxx) Plot
% +     C.4) Distributed Wing Shear Stress (tau) Plot
% +
% +  D) WING TIP DISPLACEMENTS, TWIST, AND BENDING SLOPES
% +     D.1) Distributed Wing X-direction (Axial) Displacement
% +     D.2) Distributed Wing Y-direction (Drag ) Displacement
% +     D.2) Distributed Wing Z-direction (Lift ) Displacement
% +     D.3) Distributed Wing Twist Rotation
% +     D.4) Distributed Wing Bending Slopes (dv/dx, dw/dx)
% +
% +  Input Data Array: dataIn (57)
% +     dataIn(01):     Number of Output Plot Data Points (nplot)
% +     dataIn(02):     Wing Length (inch)
% +     dataIn(03):     Wing Chord  (inch)
% +     dataIn(04):     Maximum Wing Thickness (% of chord)
% +     dataIn(05):     Secondary Structure Added Wing Weight (% of distributed weight)
% +     dataIn(06):     Wing Skin Thickness (inch)
% +     dataIn(07):     Wing Skin Weight Density (lb/in^3)
% +     dataIn(08):     Skin Material Shear Modulus (Msi)
% +     dataIn(09):     Skin Material Yield Strength - Shear (Ksi)
% +     dataIn(10):     Skin Material Ultimate Strength - Shear (Ksi)
% +     dataIn(11):     Stringers #1 and #2: Y-location (% of chord)
% +     dataIn(12):     Stringers #1 and #2: Section area (A) (inch^2)
% +     dataIn(13):     Stringers #1 and #2: Section inertia about y-axis (Iyy) (inch^4)
% +     dataIn(14):     Stringers #1 and #2: Section inertia about z-axis (Izz) (inch^4)
% +     dataIn(15):     Stringers #1 and #2: Section product of inertia   (Iyz) (inch^4)
% +     dataIn(16):     Stringers #1 and #2: Weight density (lb/in^3)
% +     dataIn(17):     Stringers #1 and #2: Young's modulus                 (Msi)
% +     dataIn(18):     Stringers #1 and #2: Yield strength    - tension     (Ksi)
% +     dataIn(19):     Stringers #1 and #2: Ultimate strength - tension     (Ksi)
% +     dataIn(20):     Stringers #1 and #2: Yield strength    - comptrddion (Ksi)
% +     dataIn(21):     Stringers #1 and #2: Ultimate strength - compression (Ksi)
% +     dataIn(22):     Stringers #3 and #4: Y-location (% of chord)
% +     dataIn(23):     Stringers #3 and #4: Section area (A) (inch^2)
% +     dataIn(24):     Stringers #3 and #4: Section inertia about y-axis (Iyy) (inch^4)
% +     dataIn(25):     Stringers #3 and #4: Section inertia about z-axis (Izz) (inch^4)
% +     dataIn(26):     Stringers #3 and #4: Section product of inertia   (Iyz) (inch^4)
% +     dataIn(27):     Stringers #3 and #4: Weight density (lb/in^3)
% +     dataIn(28):     Stringers #3 and #4: Young's modulus                 (Msi)
% +     dataIn(29):     Stringers #3 and #4: Yield strength    - tension     (Ksi)
% +     dataIn(30):     Stringers #3 and #4: Ultimate strength - tension     (Ksi)
% +     dataIn(31):     Stringers #3 and #4: Yield strength    - comptrddion (Ksi)
% +     dataIn(32):     Stringers #3 and #4: Ultimate strength - compression (Ksi)
% +     dataIn(33):     Safety Factor - Yield
% +     dataIn(34):     Safety Factor - Ultimate
% +     dataIn(35):     First Load Location  - X (% of Length)
% +     dataIn(36):     Concentrated Force   - X Direction (lb)
% +     dataIn(37):     Concentrated Force   - Y Direction (lb)
% +     dataIn(38):     Concentrated Force   - Z Direction (lb)
% +     dataIn(39):     Concentrated Torque  - About X Direction (lb-in)
% +     dataIn(40):     Concentrated Moment  - About Y Direction (lb-in)
% +     dataIn(41):     Concentrated Moment  - About Z Direction (lb-in)
% +     dataIn(42):     Second Load Location - X (% of Length)
% +     dataIn(43):     Concentrated Force   - X Direction (lb)
% +     dataIn(44):     Concentrated Force   - Y Direction (lb)
% +     dataIn(45):     Concentrated Force   - Z Direction (lb)
% +     dataIn(46):     Concentrated Torque  - About X Direction (lb-in)
% +     dataIn(47):     Concentrated Moment  - About Y Direction (lb-in)
% +     dataIn(48):     Concentrated Moment  - About Z Direction (lb-in)
% +     dataIn(49):     Aircraft Load Factor
% +     dataIn(50):     Drag Distribution - Constant (lb/in)
% +     dataIn(51):     Drag Distribution - rth order (lb/in)
% +     dataIn(52):     Drag Distribution - polynomial order
% +     dataIn(53):     Lift Distribution - Constant (lb/in)
% +     dataIn(54):     Lift Distribution - 2nd Order (lb/in)
% +     dataIn(55):     Lift Distribution - 4th Order (lb/in)
% +     dataIn(56):     Twist Moment Distribution - Constant (lb-in/in)
% +     dataIn(57):     Twist Moment Distribution - 1st Order (lb-in/in)
% +
% +  Output Data
% +   Name:              Name of author of this analysis function
% +   PID:               UCSD Student ID number of author
% +   dataOut1:          Packed calculated output variable data
% +     dataOut1(01):   Modulus Weighted Centroid y-direction (inch)
% +     dataOut1(02):   Modulus Weighted Centroid z-direction (inch)
% +     dataOut1(03):   Cross-Section Weight rho*A (lb/in)
% +     dataOut1(04):   Axial   Stiffness EA   (lb)
% +     dataOut1(05):   Bending Stiffness EIyy (lb-in^2)
% +     dataOut1(06):   Bending Stiffness EIzz (lb-in^2)
% +     dataOut1(07):   Bending Stiffness EIyz (lb-in^2)
% +     dataOut1(08):   Torsion Stiffness GJ   (lb-in^2)
% +     dataOut1(09):   Shear Center, y-direction (inch)
% +     dataOut1(10):   Shear Center, z-direction (inch)
% +     dataOut1(11):   Total Half-Span Wing Weight including added weight factor (lb)
% +     dataOut1(12):   Root Internal Force - X Direction (lb)
% +     dataOut1(13):   Root Internal Force - Y Direction (lb)
% +     dataOut1(14):   Root Internal Force - Z Direction (lb)
% +     dataOut1(15):   Root Internal Moment - about X Direction (lb-in)
% +     dataOut1(16):   Root Internal Moment - about Y Direction (lb-in)
% +     dataOut1(17):   Root Internal Moment - about Z Direction (lb-in)
% +     dataOut1(18):   Stringer (#1) Calculated Axial Stress (lb/in^2)
% +     dataOut1(19):   Stringer (#1) Allowable Stress - Tension (lb/in^2)
% +     dataOut1(20):   Stringer (#1) Allowable Stress - Compression (lb/in^2)
% +     dataOut1(21):   Stringer (#1) Margin of Safety
% +     dataOut1(22):   Stringer (#2) Calculated Axial Stress (lb/in^2)
% +     dataOut1(23):   Stringer (#2) Allowable Stress - Tension (lb/in^2)
% +     dataOut1(24):   Stringer (#2) Allowable Stress - Compression (lb/in^2)
% +     dataOut1(25):   Stringer (#2) Margin of Safety
% +     dataOut1(26):   Stringer (#3) Calculated Axial Stress (lb/in^2)
% +     dataOut1(27):   Stringer (#3) Allowable Stress - Tension (lb/in^2)
% +     dataOut1(28):   Stringer (#3) Allowable Stress - Compression (lb/in^2)
% +     dataOut1(29):   Stringer (#3) Margin of Safety
% +     dataOut1(30):   Stringer (#4) Calculated Axial Stress (lb/in^2)
% +     dataOut1(31):   Stringer (#4) Allowable Stress - Tension (lb/in^2)
% +     dataOut1(32):   Stringer (#4) Allowable Stress - Compression (lb/in^2)
% +     dataOut1(33):   Stringer (#4) Margin of Safety
% +     dataOut1(34):   Skin Panel (1.2) Calculated Shear Stress (lb/in^2)
% +     dataOut1(35):   Skin Panel (1.2) Allowable Stress - Shear (lb/in^2)
% +     dataOut1(36):   Skin Panel (1.2) Margin of Safety
% +     dataOut1(37):   Skin Panel (2.3) Calculated Shear Stress (lb/in^2)
% +     dataOut1(38):   Skin Panel (2.3) Allowable Stress - Shear (lb/in^2)
% +     dataOut1(39):   Skin Panel (2.3) Margin of Safety
% +     dataOut1(40):   Skin Panel (3.4) Calculated Shear Stress (lb/in^2)
% +     dataOut1(41):   Skin Panel (3.4) Allowable Stress - Shear (lb/in^2)
% +     dataOut1(42):   Skin Panel (3.4) Margin of Safety
% +     dataOut1(43):   Skin Panel (4.1) Calculated Shear Stress (lb/in^2)
% +     dataOut1(44):   Skin Panel (4.1) Allowable Stress - Shear (lb/in^2)
% +     dataOut1(45):   Skin Panel (4.1) Margin of Safety
% +     dataOut1(46):   Tip Displacement  - X Direction (inch)
% +     dataOut1(47):   Tip Displacement  - Y Direction (inch)
% +     dataOut1(48):   Tip Displacement  - Z Direction (inch)
% +     dataOut1(49):   Tip Twist (degree)
% +     dataOut1(50):   Tip Bending Slope (dv/dx) (inch/inch)
% +     dataOut1(51):   Tip Bending Slope (dw/dx) (inch/inch)
% +
% +   dataOut2(nplot,24):  Packed calculated output plot data
% +     column( 1):     X direction coordinate (inch)
% +     column( 2):     Applied distributed drag force (lb/in)
% +     column( 3):     Applied distributed lift force (lb/in)
% +     column( 4):     Applied distributed torque (lb-in/in)
% +     column( 5):     Internal shear force  - Vx (lb)
% +     column( 6):     Internal shear force  - Vy (lb)
% +     column( 7):     Internal shear force  - Vz (lb)
% +     column( 8):     Internal axial torque - Mx (lb-in)
% +     column( 9):     Internal bending moment - My (lb-in)
% +     column(10):     Internal bending moment - Mz (lb-in)
% +     column(11):     Stringer (#1) Axial Stress (lb/in^2)
% +     column(12):     Stringer (#2) Axial Stress (lb/in^2)
% +     column(13):     Stringer (#3) Axial Stress (lb/in^2)
% +     column(14):     Stringer (#4) Axial Stress (lb/in^2)
% +     column(15):     Skin Panel (1.2) Shear Stress (lb/in^2)
% +     column(16):     Skin Panel (2.3) Shear Stress (lb/in^2)
% +     column(17):     Skin Panel (3.4) Shear Stress (lb/in^2)
% +     column(18):     Skin Panel (4.1) Shear Stress (lb/in^2)
% +     column(19):     Displacement - X Direction (inch)
% +     column(20):     Displacement - Y Direction (inch)
% +     column(21):     Displacement - z Direction (inch)
% +     column(22):     Twist (Twist1 + Twist2 + Twist3) (degree)
% +     column(23):     Bending Slope (dv/dx) (inch/inch)
% +     column(24):     Bending Slope (dw/dx) (inch/inch)
% +     column(25):     Twist1 (Twist from Vy only)  (degree)
% +     column(26):     Twist2 (Twist from Vz only)  (degree)
% +     column(27):     Twist3 (Twist from Mx only)  (degree)
% +
% + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + +

% . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
% .  SECTION (#1): Unpack Input Data Array and Write User Name and PID
% . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
   disp('     (1) Unpack Input Data and Write User Name and PID')

   nplot    = dataIn( 1);              % number of output plot data points
   Lo       = dataIn( 2);              % Wing Length (inch)
   Co       = dataIn( 3);              % Wing Chord  (inch)
   tmax     = dataIn( 4)*Co/100;       % Maximum Wing Thickness (inch)
   Kaw      = dataIn( 5);              % Secondary Structure Added Weight (% of wing weight)

   T_sk     = dataIn( 6);              % Wing Skin Thickness (inch)
   rho_sk   = dataIn( 7);              % Wing Skin Weight Density (lb/inch^3)
   G_sk     = dataIn( 8)*(1000000.);   % Skin Material Shear Modulus (lb/in^2)
   Tau_y_sk = dataIn( 9)*(   1000.);   % Skin Material Yield Shear Strength (lb/in^2)
   Tau_u_sk = dataIn(10)*(   1000.);   % Skin Material Ultimate Shear Strength (lb/in^2)

   Yo(1)    = dataIn(11)*Co/100;       % Stringer #1 Y-location (inch)
   Zo(1)    = tmax/2.;                 % Stringer #1 Z-location (inch)
   As(1)    = dataIn(12);              % Stringer #1 Cross-Section Area (inch^2)
   Iyys(1)  = dataIn(13);              % Stringer #1 Iyy Inertia about the y-axis (inch^4)
   Izzs(1)  = dataIn(14);              % Stringer #1 Izz Inertia about the z-axis (inch^4)
   Iyzs(1)  = dataIn(15);              % Stringer #1 Iyz Product of Inertia (inch^4)
   rhos(1)  = dataIn(16);              % Stringer #1 Weight Density (lb/inch^3)
   Es(1)    = dataIn(17)*(1000000.);   % Stringer #1 Young's Modulus (lb/in^2)
   SyTs(1)  = dataIn(18)*(   1000.);   % Stringer #1 Yield Strength    - Tension (lb/in^2)
   SuTs(1)  = dataIn(19)*(   1000.);   % Stringer #1 Ultimate Strength - Tension (lb/in^2)
   SyCs(1)  = dataIn(20)*(   1000.);   % Stringer #1 Yield Strength    - Compression (lb/in^2)
   SuCs(1)  = dataIn(21)*(   1000.);   % Stringer #1 Ultimate Strength - Compression (lb/in^2)

   Yo(2)    = dataIn(11)*Co/100;       % Stringer #2 Y-location (inch)
   Zo(2)    =-tmax/2.;                 % Stringer #2 Z-location (inch)
   As(2)    = dataIn(12);              % Stringer #2 Cross-Section Area (inch^2)
   Iyys(2)  = dataIn(13);              % Stringer #2 Iyy Inertia about the y-axis (inch^4)
   Izzs(2)  = dataIn(14);              % Stringer #2 Izz Inertia about the z-axis (inch^4)
   Iyzs(2)  = dataIn(15);              % Stringer #2 Iyz Product of Inertia (inch^4)
   rhos(2)  = dataIn(16);              % Stringer #2 Weight Density (lb/inch^3)
   Es(2)    = dataIn(17)*(1000000.);   % Stringer #2 Young's Modulus (lb/in^2)
   SyTs(2)  = dataIn(18)*(   1000.);   % Stringer #2 Yield Strength    - Tension (lb/in^2)
   SuTs(2)  = dataIn(19)*(   1000.);   % Stringer #2 Ultimate Strength - Tension (lb/in^2)
   SyCs(2)  = dataIn(20)*(   1000.);   % Stringer #2 Yield Strength    - Compression (lb/in^2)
   SuCs(2)  = dataIn(21)*(   1000.);   % Stringer #2 Ultimate Strength - Compression (lb/in^2)

   Yo(3)    = dataIn(22)*Co/100;       % Stringer #3 Y-location (inch)
   Zo(3)    =-tmax/2.;                 % Stringer #3 Z-location (inch)
   As(3)    = dataIn(23);              % Stringer #3 Cross-Section Area (inch^2)
   Iyys(3)  = dataIn(24);              % Stringer #3 Iyy Inertia about the y-axis (inch^4)
   Izzs(3)  = dataIn(25);              % Stringer #3 Izz Inertia about the z-axis (inch^4)
   Iyzs(3)  = dataIn(26);              % Stringer #3 Iyz Product of Inertia (inch^4)
   rhos(3)  = dataIn(27);              % Stringer #3 Weight Density (lb/inch^3)
   Es(3)    = dataIn(28)*(1000000.);   % Stringer #3 Young's Modulus (lb/in^2)
   SyTs(3)  = dataIn(29)*(   1000.);   % Stringer #3 Yield Strength    - Tension (lb/in^2)
   SuTs(3)  = dataIn(30)*(   1000.);   % Stringer #3 Ultimate Strength - Tension (lb/in^2)
   SyCs(3)  = dataIn(31)*(   1000.);   % Stringer #3 Yield Strength    - Compression (lb/in^2)
   SuCs(3)  = dataIn(32)*(   1000.);   % Stringer #3 Ultimate Strength - Compression (lb/in^2)

   Yo(4)    = dataIn(22)*Co/100;       % Stringer #4 Y-location (inch)
   Zo(4)    = tmax/2.;                 % Stringer #4 Z-location (inch)
   As(4)    = dataIn(23);              % Stringer #4 Cross-Section Area (inch^2)
   Iyys(4)  = dataIn(24);              % Stringer #4 Iyy Inertia about the y-axis (inch^4)
   Izzs(4)  = dataIn(25);              % Stringer #4 Izz Inertia about the z-axis (inch^4)
   Iyzs(4)  = dataIn(26);              % Stringer #4 Iyz Product of Inertia (inch^4)
   rhos(4)  = dataIn(27);              % Stringer #4 Weight Density (lb/inch^3)
   Es(4)    = dataIn(28)*(1000000.);   % Stringer #4 Young's Modulus (lb/in^2)
   SyTs(4)  = dataIn(29)*(   1000.);   % Stringer #4 Yield Strength    - Tension (lb/in^2)
   SuTs(4)  = dataIn(30)*(   1000.);   % Stringer #4 Ultimate Strength - Tension (lb/in^2)
   SyCs(4)  = dataIn(31)*(   1000.);   % Stringer #4 Yield Strength    - Compression (lb/in^2)
   SuCs(4)  = dataIn(32)*(   1000.);   % Stringer #4 Ultimate Strength - Compression (lb/in^2)

   SFy      = dataIn(33);              % Safety Factor - Yield
   SFu      = dataIn(34);              % Safety Factor - Ultimate

   x1       = dataIn(35)*Lo/100;       % First Load Location (inch)
   Fx1      = dataIn(36);              % Concentrated Force - X Direction (lb)
   Fy1      = dataIn(37);              % Concentrated Force - Y Direction (lb)
   Fz1      = dataIn(38);              % Concentrated Force - Z Direction (lb)
   Mx1      = dataIn(39);              % Concentrated Torque - About X Direction (lb-in)
   My1      = dataIn(40);              % Concentrated Moment - About Y Direction (lb-in)
   Mz1      = dataIn(41);              % Concentrated Moment - About Z Direction (lb-in)

   x2       = dataIn(42)*Lo/100;       % Second Load Location (inch)
   Fx2      = dataIn(43);              % Concentrated Force - X Direction (lb)
   Fy2      = dataIn(44);              % Concentrated Force - Y Direction (lb)
   Fz2      = dataIn(45);              % Concentrated Force - Z Direction (lb)
   Mx2      = dataIn(46);              % Concentrated Torque - About X Direction (lb-in)
   My2      = dataIn(47);              % Concentrated Moment - About Y Direction (lb-in)
   Mz2      = dataIn(48);              % Concentrated Moment - About Z Direction (lb-in)

   LF       = dataIn(49);              % Aircraft Load Factor

   py0      = dataIn(50);              % Drag Distribution - Constant (lb/in)
   pyr      = dataIn(51);              % Drag Distribution - rth order (lb/in)
   rth      = dataIn(52);              % Drag Distribution - polynomial order
   pz0      = dataIn(53);              % Lift Distribution - Constant (lb/in)
   pz2      = dataIn(54);              % Lift Distribution - 2nd Order (lb/in)
   pz4      = dataIn(55);              % Lift Distribution - 4th Order (lb/in)
   mx0      = dataIn(56);              % Twist Moment Distribution - Constant (lb-in/in)
   mx1      = dataIn(57);              % Twist Moment Distribution - 1st Order (lb-in/in)

% Define author name and PID (Write in your name and PID)
   name     = {'Gregorio Zaltzman'};
   PID      = {'A17415158'};

% . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
% .  SECTION (#2): Calculate the Centroid, Mass Properties, and Modulus-
% .                Weighted Bending Section Properties.
% . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
   disp('     (2) Calculate the Centroid and Bending Section Properties')



%  2.1) Calculate Modulus-Weighted Centroid.  Use stringers only.
%  --------------------------------------------------------------

EA = sum(Es .* As); % axial stifness

% Centroid properties

Yc = sum(Lo * rhos * As * Yo) / EA;
Zc = sum(Lo * As * rhos * Zo) / EA;

%  2.2) Calculate Modulus-Weighted Stiffnesses (EIyy, EIzz, EIyz) about
%       the modulus weighted centroid.  Use stringers only.
%  ---------------------------------------------------------------------


EIyy = sum(Es *(Iyys + As*((Zo-Zc).^2)));
EIzz = sum(Es *(Izzs + As*((Yo-Yc).^2)));
Eiyz = sum (Es * Iyzs);

%  2.3) Calculate the cross-section weight (stringers and skin) and the total wing weight
%  --------------------------------------------------------------------------------------

% elipse properties
a = co/4;
b =tmax/2;

% Cross sectional Areas
Elipse_Area = pi*a*b/2;
Flat_Area = tmax * Co/4;
Linear_Area = (Co/2)*(tmax)/2;
SA = Linear_Area + Flat_Area + Elipse_Area; % cross sectional area

% Cross sectional Perimeter
Elipse_Per = 1/2 * (pi*(3*(a+b) - sqrt((3a+b) * (8a+3b)) ));
Flat_Peri = 2*Co/4;
Linear_Peri = 2* sqrt( (tmax/2).^2 + (Co).^2);
SC = Linear_Peri + Flat_Peri + Elipse_Area; % wing section circumfurence

rhoA = (sum(rhos .* As) + rho_sk * T_sk * SC) * (1 + Kaw/100); % Cross-Section Weight (lb/inch)
Weight = rhoA * Lo;

% . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
% .  SECTION (#3): Calculate Root and Distributed Stress Resultants for
% .                Applied Concentrated Forces and Aerodynamic Loads
% . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
   disp('     (3) Calculate Root and Distributed Stress Resultants for Applied Loads')

% 3.a) Combine Applied Concentrated Forces (1) and (2).  These loads are at the centroid

% Root forces
Vxo = Fx1 + Fx2;
Vyo = Fy1 + Fy2 + Lo * (py0 + pyr / (rth+1) );
Vzo = Fz1 + Fz2 + Lo * (pz0 + pz2 * (2/3) + pz4 *(4/5) ) - LF * Weight;

% Root Moments
Mxo = Mx1 + Mx2 - LF * Weight * (Co/2 - Yc) - Lo*(pz0 + pz2/3 + pz4/5)*(Yc - Co/4) + mx0*Lo + (mx1*Lo)/2 - (Fz1+Fz2)*(Yc - Co/4);
Myo = My1 + My2 - Fz1*x1 - Fz2*x2 + LF * Weight * Lo/2 - (pz0*Lo^2)/2 - (pz2*Lo^2)/4 - (pz4*Lo^2)/6;
Mzo = Mz1 + Mz2 + Fy1*x1 + Fy2*x2 + (py0*Lo^2)/2 + (pyr*Lo^2)/(rth+2) + (Fx1+Fx2)*(Yc-Co/4);

% 3.b) Applied Aerodynamic Forces (move distributed lift from C/4 to
%      centroid.  Move distributed weight (nw) from C/2 to centroid.

pz = pz0 + pz2 * (x/Lo).^2 + pz4* (x/Lo).^4 - LF * Weight;
py = py0 + pyr(x/Lo).^rth;
px = 0;
mx = mx0 + mx1*x/Lo - (pz + LF * Weight/Lo)*(Yc - Co/4) - (LF * Weight/Lo) * (Co/2 - Yc);
my = 0;
mz = 0;


% 3.c) Calculate Distributions for Applied Loads and Internal Stress Resultants

% stress resultant distribution
Vx = Vxo;
Vy = Vyo - (py0 * x + (pyr * x.^(rth+1)) / ((Lo^rth) * (rth+1)));
Vz = Vzo - (pz0 * x (pz2*x.^3)/3*L0.^2) + (pz4*x.^5)/5*L0.^4 - (LF * Weight * x)/Lo);

for i = 1:nplot
    if x(i) > x1
       Vx(i) = Vx(i) - Fx1;
       Vy(i) = Vy(i) - Fy1;
       Vz(i) = Vz(i) - Fz1;
    end
    if x(i) > x2
       Vx(i) = Vx(i) - Fx2;
       Vy(i) = Vy(i) - Fy2;
       Vz(i) = Vz(i) - Fz2;
    end
end



% moment stress resultant distribution

% Mx distribution
Mx = -(mx0 * x + (mx1 * x.^2) / (2 * Lo)) + Mxo ...
    + (pz0 * x + (pz2 * (x.^3)) / (3 * Lo^2) + (pz4 * (x.^5)) / (5 * Lo^4)) * (Yc - Co / 4) ...
    - (py0 * x + (pyr * x.^(rth+1)) / ((Lo^rth) * (rth+1))) * Zc ...
    + (LF * Weight / Lo) * x * (Co / 2 - Yc);

% My distribution
My = - (pz4 * x.^6) / (30 * Lo^4) - (pz2 * x.^4) / (12 * Lo^2) ...
    + ((LF * Weight - Lo * pz0) * x.^2) / (2 * Lo) + Vzo * x + Myo;

% Mz distribution
Mz = (py0 * x.^2) / 2 + (pyr * (x.^(rth + 2))) / (Lo^rth * (rth + 1) * (rth + 2)) ...
    - Vyo * x + Mzo;

for i = 1:nplot
    if x(i) > x1
       Mx(i) = Mx(i) - Mx1 + Fz1 * (Yc - Co/4);
       My(i) = My(i) - My1 - Fz1 * (x(i) - x1);
       Mz(i) = Mz(i) - Mz1 + Fy1 * (x(i) - x1) - Fx1 * (Yc - Co/4) ;
    end
    if x(i) > x2
       Mx(i) = Mx(i) - Mx2 + Fz2 * (Yc - Co/4);
       My(i) = My(i) - My2 - Fz2 * (x(i) -x2);
       Mz(i) = Mz(i) - Mz2 +Fy2 * (x(i) - x2) - Fx2 * (Yc - Co/4);
    end
end


% . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
% .  SECTION (#4): STRINGER STRESSES: Calculate Allowable Properties,
% .                Root Stresses, Margins of Safety, and Stress Distribution
% . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
   disp('     (4) Calculate Stringer Stress Distribution and Root Margins of Safety')

% 4.1) Calculate root stringer stresses and margins of safety

% allowable stresses
for i = 1:4
Sat(i) = min(SyTs(i)/SFy, SuTs(i)/SFu);
Sac(i) = max(SyCs(i)/SFy, SuCs(i)/SFu);
end

% axial stresses
for i = 1:4
Sxxo(i) = Es(i) * (Vxo/EA + ((Myo * abs(Zo(i)-Zc)) / EIyy) + ((Mzo * abs (Yc-Yo(i)))/EIzz));
end

% margin of safety
for i = 1:4
MSs(i) = Sat(i)/sqrt(Sxxo(i).^2) - 1;
end

% 4.2) calculate stringer stress distributions

% axial stress distribution

Sxx1 = Es(1) * (Vx/EA + ((My * abs(Zo(1)-Zc)) / EIyy) + (Mz * abs(Yc-Yo(1))) / EIzz);
Sxx2 = Es(2) * (Vx/EA - ((My * abs(Zo(2)-Zc)) / EIyy) + (Mz * abs(Yc-Yo(2))) / EIzz);
Sxx3 = Es(3) * (Vx/EA - ((My * abs(Zo(3)-Zc)) / EIyy) - (Mz * abs(Yc-Yo(3))) / EIzz);
Sxx4 = Es(4) * (Vx/EA + ((My * abs(Zo(4)-Zc)) / EIyy) - (Mz * abs(Yc-Yo(4))) / EIzz);

% . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
% .  SECTION (#5): WING BENDING DISPLACEMENTS AND SLOPES. Calculate tip
% .                values and distributions
% . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
   disp('     (5) Calculate Wing Bending Displacements and Bending Slope Distributions')

Disp_X = zeros(1, nplot);
Disp_Y = zeros(1, nplot);
Disp_Z = zeros(1, nplot);
Twist = zeros(1, nplot);
DvDx = zeros(1, nplot);
DwDx = zeros(1, nplot);

% 5.1) Calculate displacements and slopes for concentrated force (#1)  (Don't include twist)

for i = 1:nplot
    if x(i) >= x1
        DvDx(i) = (F1 * (x(i) - x1)) / (E * Izz);
        Disp_Y(i) = (F1 * (x(i) - x1).^2) / (2 * E * Izz);
    end
end

% 5.2) Calculate displacements and slopes for concentrated force (#2)  (Don't include twist)

for i = 1:nplot
    if x(i) >= x2
        DvDx(i) = DvDx(i) + (F2 * (x(i) - x2)) / (E * Izz);
        Disp_Y(i) = Disp_Y(i) + (F2 * (x(i) - x2).^2) / (2 * E * Izz);
    end
end

% 5.3) Calculated displacements and slopes for aerodynamic loading (Don't include twist)

for i = 1:nplot
    DwDx(i) = (pz0 * x(i).^3) / (6 * E * Iyy) + ...
              (pz2 * x(i).^5) / (120 * E * Iyy * Lo^2) + ...
              (pz4 * x(i).^7) / (5040 * E * Iyy * Lo^4);

    Disp_Z(i) = (pz0 * x(i).^4) / (24 * E * Iyy) + ...
                (pz2 * x(i).^6) / (720 * E * Iyy * Lo^2) + ...
                (pz4 * x(i).^8) / (40320 * E * Iyy * Lo^4);
end

% 5.4) Combine displacements, slopes, and twist for concentrated loads and aero loads

Disp_Y = Disp_Y + (pz0 * x.^4) / (24 * E * Izz) + (pz2 * x.^6) / (720 * E * Izz * Lo^2) + (pz4 * x.^8) / (40320 * E * Izz * Lo^4);
Twist = Twist_0 + (Mx / (G * J)) * x; % Assuming linear twist distribution


% . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
% .  SECTION (#6): SHEAR STUDIES:  Torsion and Transverse Loading. Calculatemx
% .                shear flow, shear stresses, and margin of safety.
% . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
   disp('     (6) Calculate Shear Flow, Shear Stresses, and Margins of Safety')

%  6.1) Preliminaries:  Calculate the leading edge ellipse area, perimeter,
%       and torsion constant (GJ)

% rest is in section 2.2
GJ = (4*G_sk*(A_airfoil^2)*T_sk)/S; % Torsion Stiffness

%  6.2) Shear Flow Analysis
EA1y = Es(1) * As(1) * (Yo(1) - Yc);
EA2y = Es(2) * As(2) * (Yo(2) - Yc);
EA3y = Es(3) * As(3) * (Yo(3) - Yc);
EA4y = Es(4) * As(4) * (Yo(4) - Yc);

EA1z = Es(1) * As(1) * (Zo(1) - Zc);
EA2z = Es(2) * As(2) * (Zo(2) - Zc);
EA3z = Es(3) * As(3) * (Zo(3) - Zc);
EA4z = Es(4) * As(4) * (Zo(4) - Zc);

% Shear Force Contributions (Including EA1)
F1 = [EA1y / Izz; EA2y / Izz; EA3y / Izz; EA4y / Izz; -Zc];
F2 = [EA1z / Iyy; EA2z / Iyy; EA3z / Iyy; EA4z / Iyy; Yc - Co/4];
F3 = [0; 0; 0; 0; 1];
forces = [Vy; Vz; Mx];

% Define the Jump Matrix
jump = [F1 F2 F3];

% Define Cross-Sectional Areas for Shear Flow Computation
A12 = 0.5 * pi * a * b + tmax * (Yo(1) - a);
A23 = 0.5 * tmax * abs(Yo(1) - Yo(3));
A34 = 0.5 * tmax * 0.5 * Co + tmax * abs(Co/2 - Yo(3));
A41 = A23;

A_matrix = [A12 A23 A34 A41]; % Already multiplied by 2 for consistency

% Define Shear Flow Coefficient Matrix
q_matrix = [1 -1 0 0;
            0  1 -1 0;
            0  0  1 -1;
            2 * A_matrix];

% Solve for Shear Flows
q_shear = q_matrix \ (jump * forces);


   %  Calculate the unit shear flows for the three cases (Vy, Vz, Mx) separately:


   %  Calculate the shear stress distribution along the length from (Mx), (Vy), and (Vz)


   %  Calculate the skin shear allowable stress and margin of safety (MS)
   %  at the root

Tau_allow_sk12 = min(Tau_u_sk / SFu, Tau_y_sk / SFy); % ksi
Tau_allow_sk23 = Tau_allow_sk12;
Tau_allow_sk34 = Tau_allow_sk12;
Tau_allow_sk41 = Tau_allow_sk12;

% Solve for Shear Flows (Assuming q_shear is computed already)
Tau_12 = q_shear(1) / t_skin; % ksi
Tau_23 = q_shear(2) / t_skin; % ksi
Tau_34 = q_shear(3) / t_skin; % ksi
Tau_41 = q_shear(4) / t_skin; % ksi

% Compute Margin of Safety (MS) for Each Panel
MS_sk12 = (Tau_allow_sk12 / Tau_12) - 1;
MS_sk23 = (Tau_allow_sk23 / Tau_23) - 1;
MS_sk34 = (Tau_allow_sk34 / Tau_34) - 1;
MS_sk41 = (Tau_allow_sk41 / Tau_41) - 1;
% . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
% .  SECTION (#7): SHEAR STUDIES:  Torsion and Transverse Loading. Calculate
% .                the twist distribution and tip twist.
% . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
   disp('     (7) Calculate the Twist Distribution and Tip Twist')

% 7.1) Calculate the integrated (Vy, Vz, Mx) for applied concentrated force
%      (#1) and (#2) and aero loading

Int_py_moments = (py0 * x.^2) / 2 + (pyr * x.^(rth+2)) ./ ((Lo^rth) * (rth+1) * (rth+2));
Int_pz_moments = (pz0 * x.^2) / 2 + (pz2 * x.^4) / (12 * Lo^2) + (pz4 * x.^6) / (30 * Lo^4);

% Integrated Shear Forces
IntVy = Vyo * x - Int_py_moments;
IntVz = Vzo * x - Int_pz_moments - (LF * W_wing / Lo) * (x.^2) / 2;

% Integrated Bending Moment
IntMx = Mxo * x - (mx0 * x.^2) / 2 - (mx1 * x.^3) / (6 * Lo) ...
        + (LF * W_wing / Lo) * (x.^2) * (Co/2 - Yc) / 2 ...
        + Int_pz_moments * (Yc - Co/4) - Int_py_moments * Zc;

% Store Continuity Matrices for Calculation
Vycont = [IntVy; zeros(nplot); zeros(nplot)];
Vzcont = [zeros(nplot); IntVz; zeros(nplot)];
Mxcont = [zeros(nplot); zeros(nplot); IntMx];

% lb
% int2_py_moments = py0*(x.^2)/2 + (pyr*x.^(rth+2))/((Lo^rth)*(rth+1)*(rth+2)); %lb
% IntVy = Vyo*x - (py0*(x.^2)/2 + (pyr*x.^(rth+2))/((Lo^rth)*(rth+1)*(rth+2)));
% IntVz = Vzo*x - (pz0*(x.^2)/2 + (pz2*(x.^4))/(12*Lo^2) + (pz4*(x.^6))/(30*Lo^4) -
% (LF*W_wing/Lo)*(x.^2)/2);
% IntMx = Mxo*x -(mx0*(x.^2)/2 + (mx1*x.^3)/(6*Lo)) + (LF*W_wing/Lo)*(x.^2)*(Co/2 -
% Yc)/2 + int2_pz_moments*(Yc-Co/4) - int2_py_moments*Zc;
% Vycont = [IntVy; zeros(nplot); zeros(nplot)];
% Vzcont = [zeros(nplot); IntVz; zeros(nplot)];
% Mxcont = [zeros(nplot); zeros(nplot); IntMx];


Ss = [C_ellipse C_flat/2 C_linear C_flat/2];
A_full = sum(A_matrix);
Twist1 = (180/pi)*(Ss*q_matrix*F1*IntVy)./(2*A_full*G_sk*T_sk);
Twist2 = (180/pi)*(Ss*q_matrix*F2*IntVz)./(2*A_full*G_sk*T_sk);
Twist3 = (180/pi)*(Ss*q_matrix*F3*IntMx)./(2*A_full*G_sk*T_sk);

     % Integrated Concentrated Force (#1) for Vy, Vz, and Mx


     % Integrated Concentrated Force (#2) for Vy, Vz, and Mx


     % Integrated aero loading for Vy, Vz, and Mx


     % Combine integrated loading for force #1, #2, and aero loading


% 7.2) Calculate twist separately for force #1, #2, and aero loading


     % Total twist = twist1 + twist2 + twist3


% . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
% .  SECTION (#8): SHEAR STUDIES:  Torsion and Transverse Loading.
% .                Calculate the shear center location.
% . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
   disp('     (8) Calculate the Shear Center Location')

   %  Calculate the shear center location (y-direction).  Apply a unit tip
   %  load (Vz = Pz = 1) that is offset from the centroid by (ey) such that
   %  (Mx = Pz*ey).  Calculate the twist rate and set to zero.  Solve for (ey).


   %  Calculate the shear center location (z-direction).  Apply a unit tip
   %  load (Vy = Py = 1) that is offset from the centroid by (ez) such that
   %  (Mx = -Py*ez).  Calculate the twist rate and set to zero. Solve for (ez).


% . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
% .  SECTION (#9): Pack Calculated Data into the "dataOut1" Array size: (51)
% . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
   disp('     (9) Pack the Calculated Data into Array: dataOut1')
   dataOut1     = zeros(51);
%     dataOut1(01) = Yc;                % Modulus Weighted Centroid y-direction (inch)
%     dataOut1(02) = Zc;                % Modulus Weighted Centroid z-direction (inch)
%     dataOut1(03) = rhoA;              % Cross-Section Weight (lb/inch)
%     dataOut1(04) = EA;                % Axial   Stiffness (lb)
%     dataOut1(05) = EIyy;              % Bending Stiffness (lb-in^2)
%     dataOut1(06) = EIzz;              % Bending Stiffness (lb-in^2)
%     dataOut1(07) = EIyz;              % Bending Stiffness (lb-in^2)
%     dataOut1(08) = GJ;                % Torsion Stiffness (lb-in^2)
%     dataOut1(09) = Ysc_LE;            % Shear Center y-direction (inch)
%     dataOut1(10) = Zsc_LE;            % Shear Center z-direction (inch)
%     dataOut1(11) = W_wing;            % Total Half-Span Wing Weight (lb)
%     dataOut1(12) = Vxo;               % Root Internal Force - X Direction (lb)
%     dataOut1(13) = Vyo;               % Root Internal Force - Y Direction (lb)
%     dataOut1(14) = Vzo;               % Root Internal Force - Z Direction (lb)
%     dataOut1(15) = Mxo;               % Root Internal Moment - about X Direction (lb-in)
%     dataOut1(16) = Myo;               % Root Internal Moment - about Y Direction (lb-in)
%     dataOut1(17) = Mzo;               % Root Internal Moment - about Z Direction (lb-in)
%     dataOut1(18) = Sxxo(1);           % Stringer (#1) Calculated Axial Stress (lb/in^2)
%     dataOut1(19) = Sat(1);            % Stringer (#1) Allowable Stress - Tension (lb/in^2)
%     dataOut1(20) = Sac(1);            % Stringer (#1) Allowable Stress - Compression (lb/in^2)
%     dataOut1(21) = MSs(1);            % Stringer (#1) Margin of Safety
%     dataOut1(22) = Sxxo(2);           % Stringer (#2) Calculated Axial Stress (lb/in^2)
%     dataOut1(23) = Sat(2);            % Stringer (#2) Allowable Stress - Tension (lb/in^2)
%     dataOut1(24) = Sac(2);            % Stringer (#2) Allowable Stress - Compression (lb/in^2)
%     dataOut1(25) = MSs(2);            % Stringer (#2) Margin of Safety
%     dataOut1(26) = Sxxo(3);           % Stringer (#3) Calculated Axial Stress (lb/in^2)
%     dataOut1(27) = Sat(3);            % Stringer (#3) Allowable Stress - Tension (lb/in^2)
%     dataOut1(28) = Sac(3);            % Stringer (#3) Allowable Stress - Compression (lb/in^2)
%     dataOut1(29) = MSs(3);            % Stringer (#3) Margin of Safety
%     dataOut1(30) = Sxxo(4);           % Stringer (#4) Calculated Axial Stress (lb/in^2)
%     dataOut1(31) = Sat(4);            % Stringer (#4) Allowable Stress - Tension (lb/in^2)
%     dataOut1(32) = Sac(4);            % Stringer (#4) Allowable Stress - Compression (lb/in^2)
%     dataOut1(33) = MSs(4);            % Stringer (#4) Margin of Safety
%     dataOut1(34) = Tau_12(1);         % Skin Panel (1.2) Calculated Shear Stress (lb/in^2)
%     dataOut1(35) = Tau_allow_sk12;    % Skin Panel (1.2) Allowable Shear Stress  (lb/in^2)
%     dataOut1(36) = MS_sk12;           % Skin Panel (1.2) Margin of Safety
%     dataOut1(37) = Tau_23(1);         % Skin Panel (2.3) Calculated Shear Stress (lb/in^2)
%     dataOut1(38) = Tau_allow_sk23;    % Skin Panel (2.3) Allowable Shear Stress  (lb/in^2)
%     dataOut1(39) = MS_sk23;           % Skin Panel (2.3) Margin of Safety
%     dataOut1(40) = Tau_34(1);         % Skin Panel (3.4) Calculated Shear Stress (lb/in^2)
%     dataOut1(41) = Tau_allow_sk34;    % Skin Panel (3.4) Allowable Shear Stress  (lb/in^2)
%     dataOut1(42) = MS_sk34;           % Skin Panel (3.4) Margin of Safety
%     dataOut1(43) = Tau_41(1);         % Skin Panel (4.1) Calculated Shear Stress (lb/in^2)
%     dataOut1(44) = Tau_allow_sk41;    % Skin Panel (4.1) Allowable Shear Stress  (lb/in^2)
%     dataOut1(45) = MS_sk41;           % Skin Panel (4.1) Margin of Safety
%     dataOut1(46) = Disp_X(nplot);     % Tip Diplacement - X Direction (inch)
%     dataOut1(47) = Disp_Y(nplot);     % Tip Diplacement - Y Direction (inch)
%     dataOut1(48) = Disp_Z(nplot);     % Tip Diplacement - Z Direction (inch)
%     dataOut1(49) = Twist(nplot);      % Tip Twist (degree)
%     dataOut1(50) = DvDx(nplot);       % Tip Bending Slope (dv/dx) (inch/inch)
%     dataOut1(51) = DwDx(nplot);       % Tip Bending Slope (dw/dx) (inch/inch)

% . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
% .  SECTION (#10): Pack the plot data arrays into "dataOut2"
% .                 matrix size: (nplot,24)
% . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
   disp('     (10) Pack the Calculated Plot Data into Array: dataOut2')
   dataOut2     = zeros(nplot,27);

   for i = 1:nplot;
%     dataOut2(i, 1) = x(i);            % x-location (inch)
%     dataOut2(i, 2) = py(i);           % drag force (lb/in)
%     dataOut2(i, 3) = pz(i);           % lift force (lb/in)
%     dataOut2(i, 4) = mx(i);           % distributed torque (lb-in/in)
%     dataOut2(i, 5) = Vx(i);           % Internal shear force - Vx (lb)
%     dataOut2(i, 6) = Vy(i);           % Internal shear force - Vy (lb)
%     dataOut2(i, 7) = Vz(i);           % Internal shear force - Vz (lb)
%     dataOut2(i, 8) = Mx(i);           % Internal axial force - Mx (lb-in)
%     dataOut2(i, 9) = My(i);           % Internal shear force - My (lb-in)
%     dataOut2(i,10) = Mz(i);           % Internal shear force - Mz (lb-in)
%     dataOut2(i,11) = Sxx1(i);         % Stringer (#1) Axial Stress (lb/in^2)
%     dataOut2(i,12) = Sxx2(i);         % Stringer (#2) Axial Stress (lb/in^2)
%     dataOut2(i,13) = Sxx3(i);         % Stringer (#3) Axial Stress (lb/in^2)
%     dataOut2(i,14) = Sxx4(i);         % Stringer (#4) Axial Stress (lb/in^2)
%     dataOut2(i,15) = Skin Panel (1.2) Shear Stress (lb/in^2)
%     dataOut2(i,16) = Skin Panel (2.3) Shear Stress (lb/in^2)
%     dataOut2(i,17) = Skin Panel (3.4) Shear Stress (lb/in^2)
%     dataOut2(i,18) = Skin Panel (4.1) Shear Stress (lb/in^2)
%     dataOut2(i,19) = Displacement - X Direction (inch)
%     dataOut2(i,20) = Disp_Y(i);       % Displacement - Y Direction (inch)
%     dataOut2(i,21) = Disp_Z(i);       % Displacement - z Direction (inch)
%     dataOut2(i,22) = Twist(i);        % Wing Twist (degree)
%     dataOut2(i,23) = DvDx(i);         % Bending Slope (dv/dx) (inch/inch)
%     dataOut2(i,24) = DwDx(i);         % Bending Slope (dw/dx) (inch/inch)
%     dataOut2(i,25) = Twist1(i);       % Wing Twist from Vy (degree)
%     dataOut2(i,26) = Twist2(i);       % Wing Twist from Vz (degree)
%     dataOut2(i,27) = Twist3(i);       % Wing Twist from Mx (degree)

   end;

end

%  End of Function: Wing_Analysis_Function
%  ------------------------------------------------------------------------

// HRD-02

Wing Spar Analysis

MATLAB Structural Tool.

View Full Report →

// HRD-03

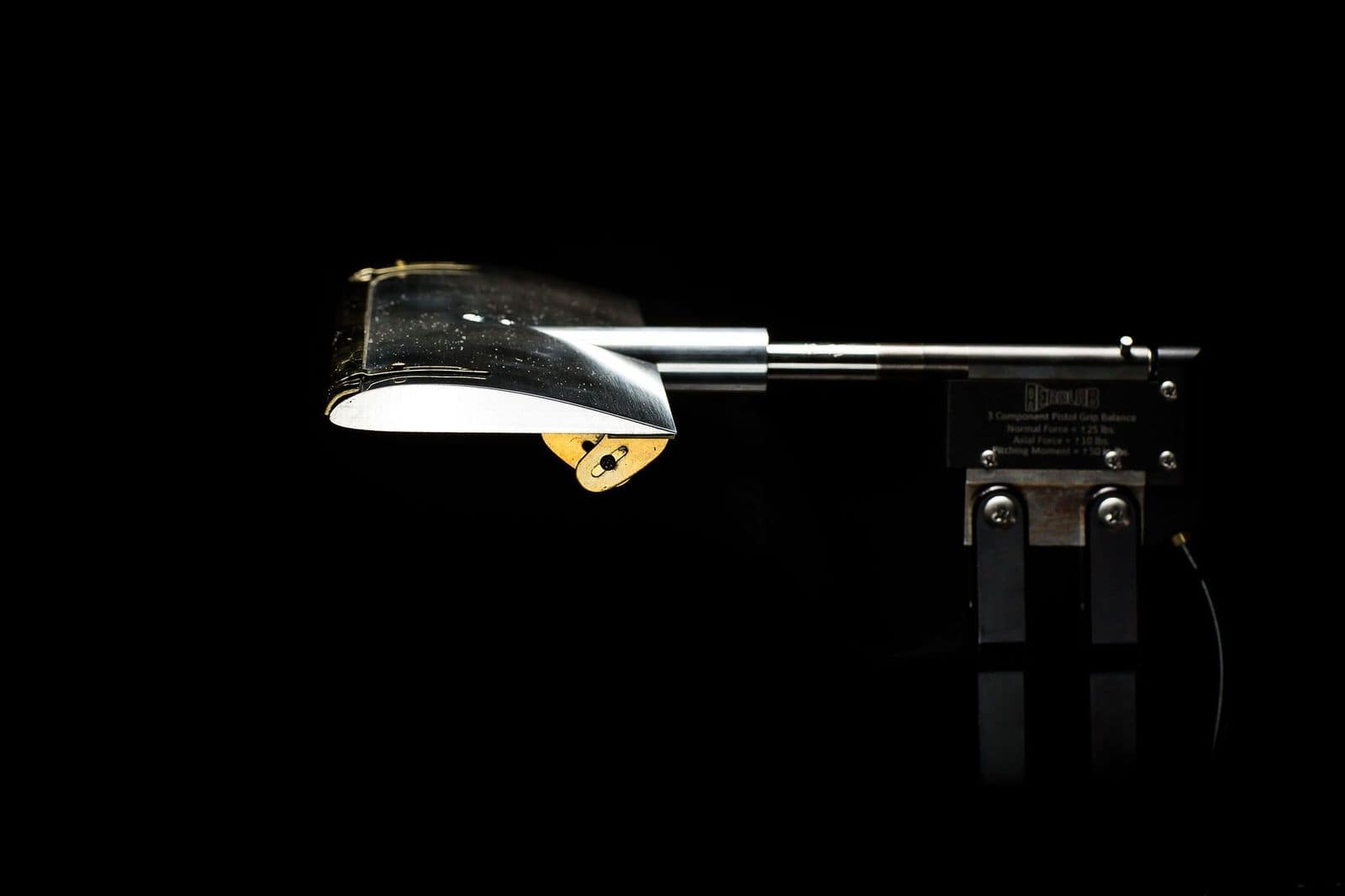

Wind Tunnel Testing

Clark Y-14 Airfoil Aerodynamics.

View Full Report →

// HRD-04

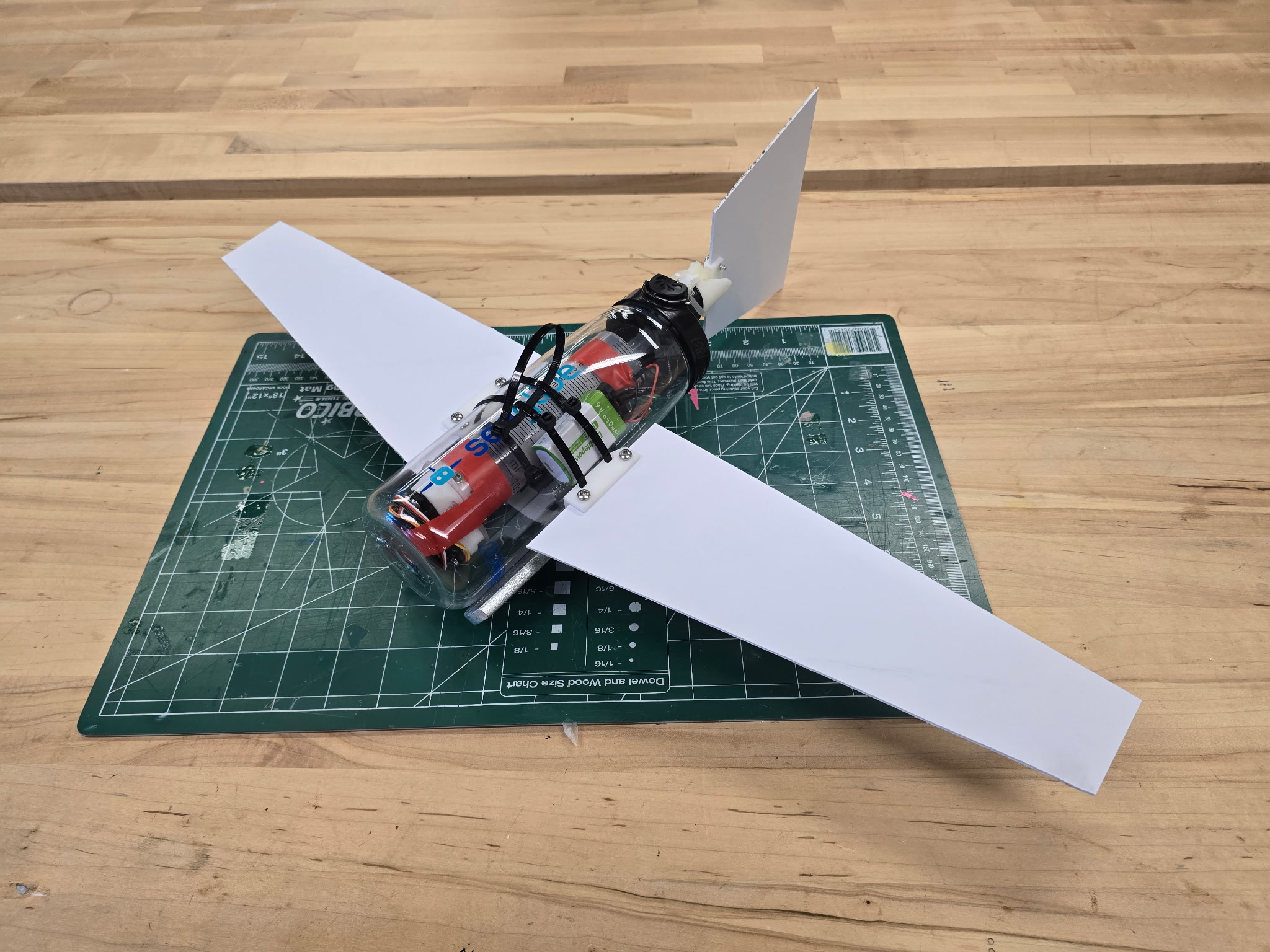

SeaGlide AUV

Autonomous underwater glider with variable buoyancy.

View Media & Report →

// HRD-05

4-Piston Engine CAD

Mechanical Design & Kinematics.

View Model →

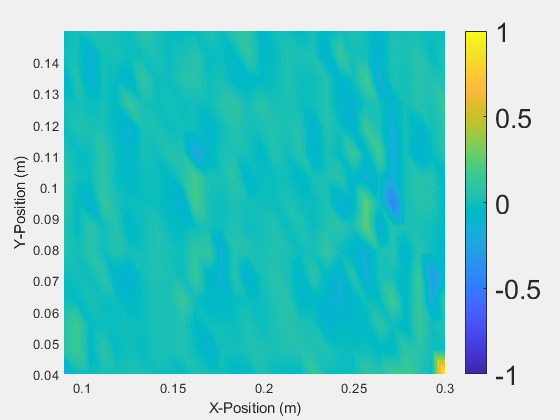

// HRD-06

Lab Operations

Acoustics & Thermodynamics.

View Full Reports →

DATA BLOCK 05

Aspirations

My long-term goal is to help propel humanity into the next era of space exploration by contributing to the development of advanced astronautical vehicles and space systems. I aspire to work at the forefront of spacecraft design, system integration, and propulsion innovation, developing technologies that strengthen human capabilities on Earth while expanding our presence beyond it. I am particularly motivated by cutting-edge vehicle concepts and emerging technologies that push the boundaries of what is currently possible.

I’m exploring Master’s programs in Europe with a focus aligned with space engineering, while keeping a strong interest in the broader aerospace ecosystem and advanced vehicle development.

DATA BLOCK 06

Wing Span (b)	51 cm
Wing Area (S)	382.5 cm²
Dry Weight	10.32 N
Buoyancy Change (Dive)	+0.0589 N
Buoyancy Change (Climb)	-0.2551 N
Max Pitch Attitude Angle	±44.5°

Skills

Timeline

Sep 2022

UC San Diego — B.S.c Aerospace

Sep 2023

ITS Service Desk Technician

May 2025

Promoted — Service Desk Lead

Jun 2025

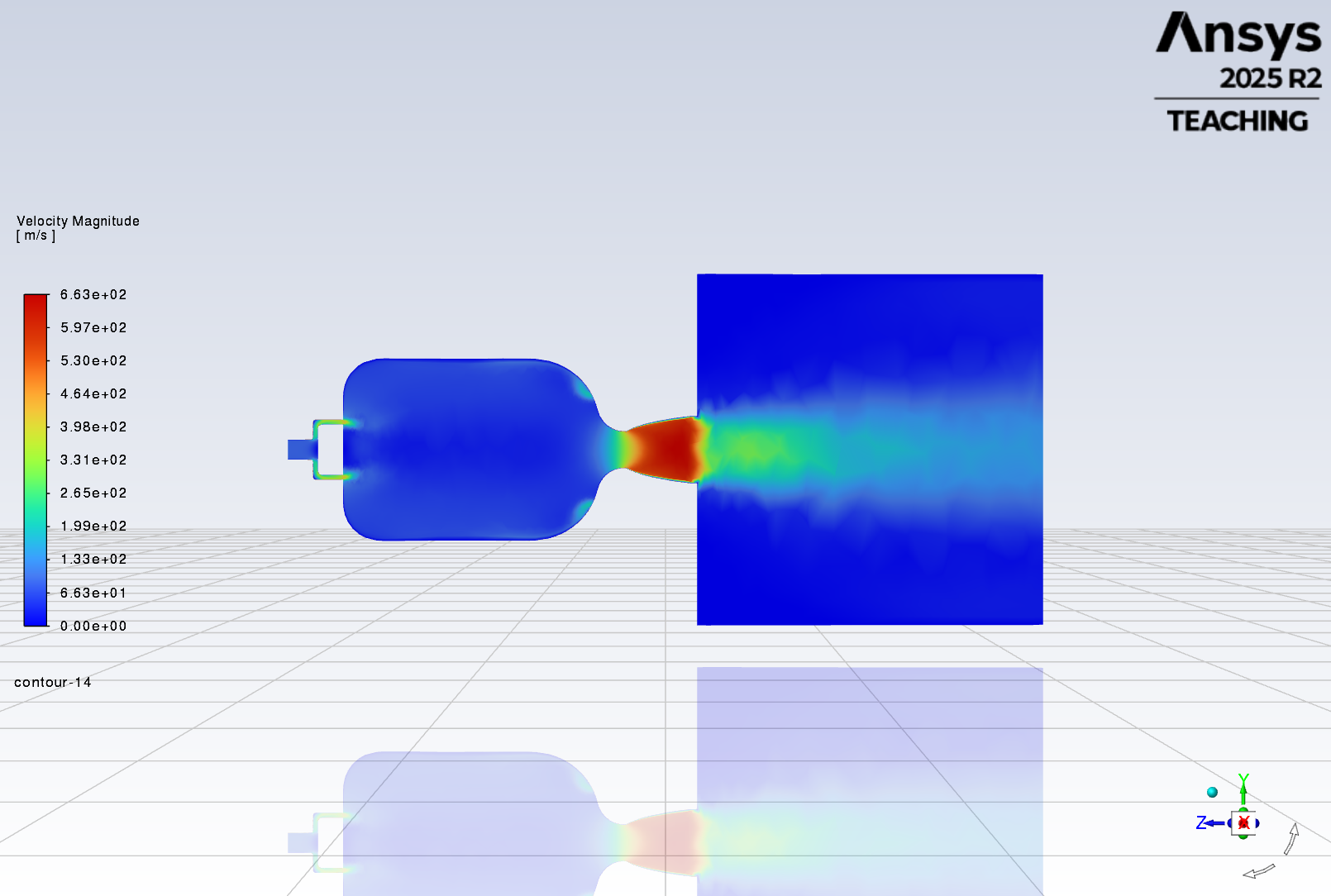

RPL at UCSD

Sep 2025

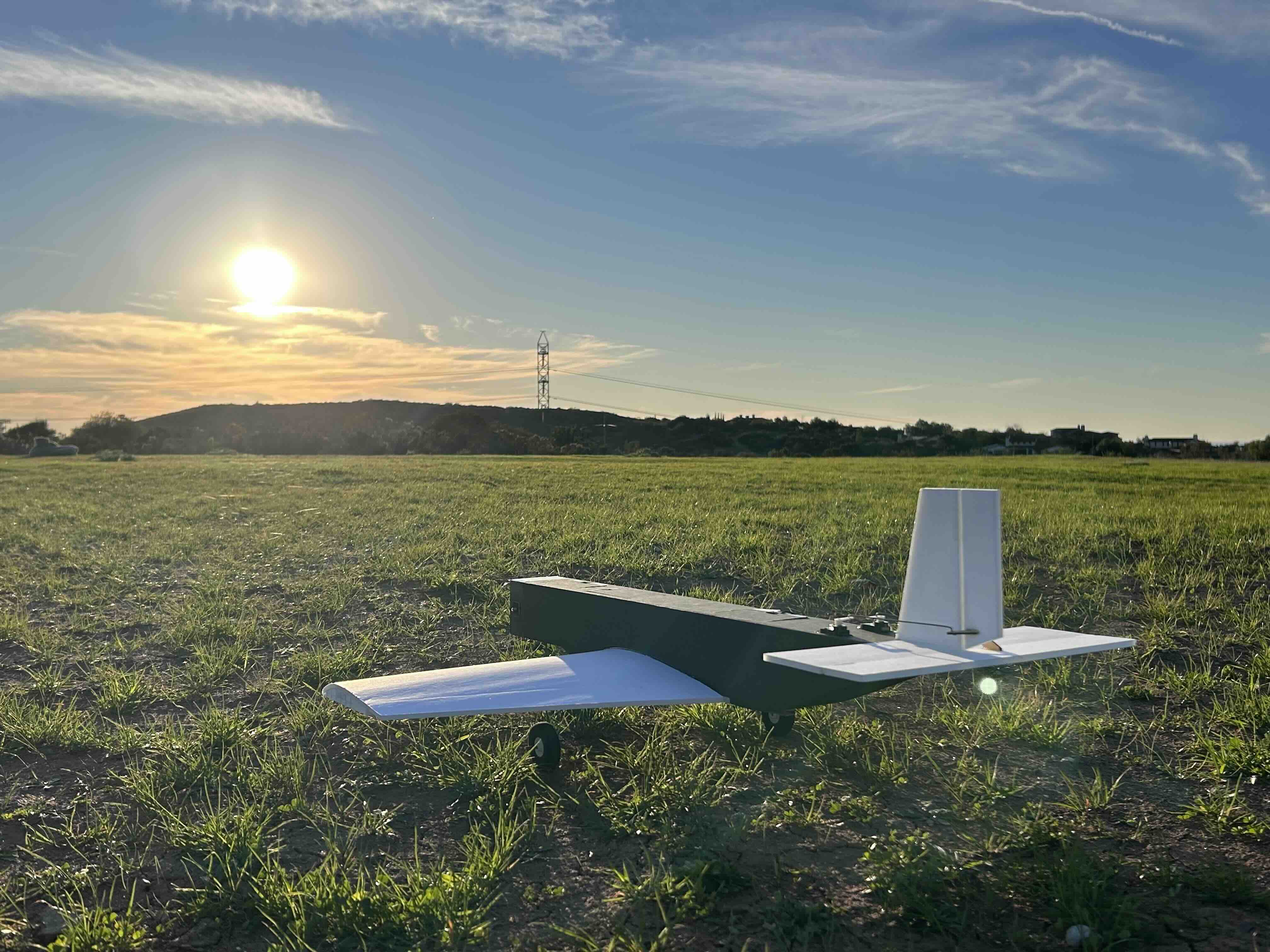

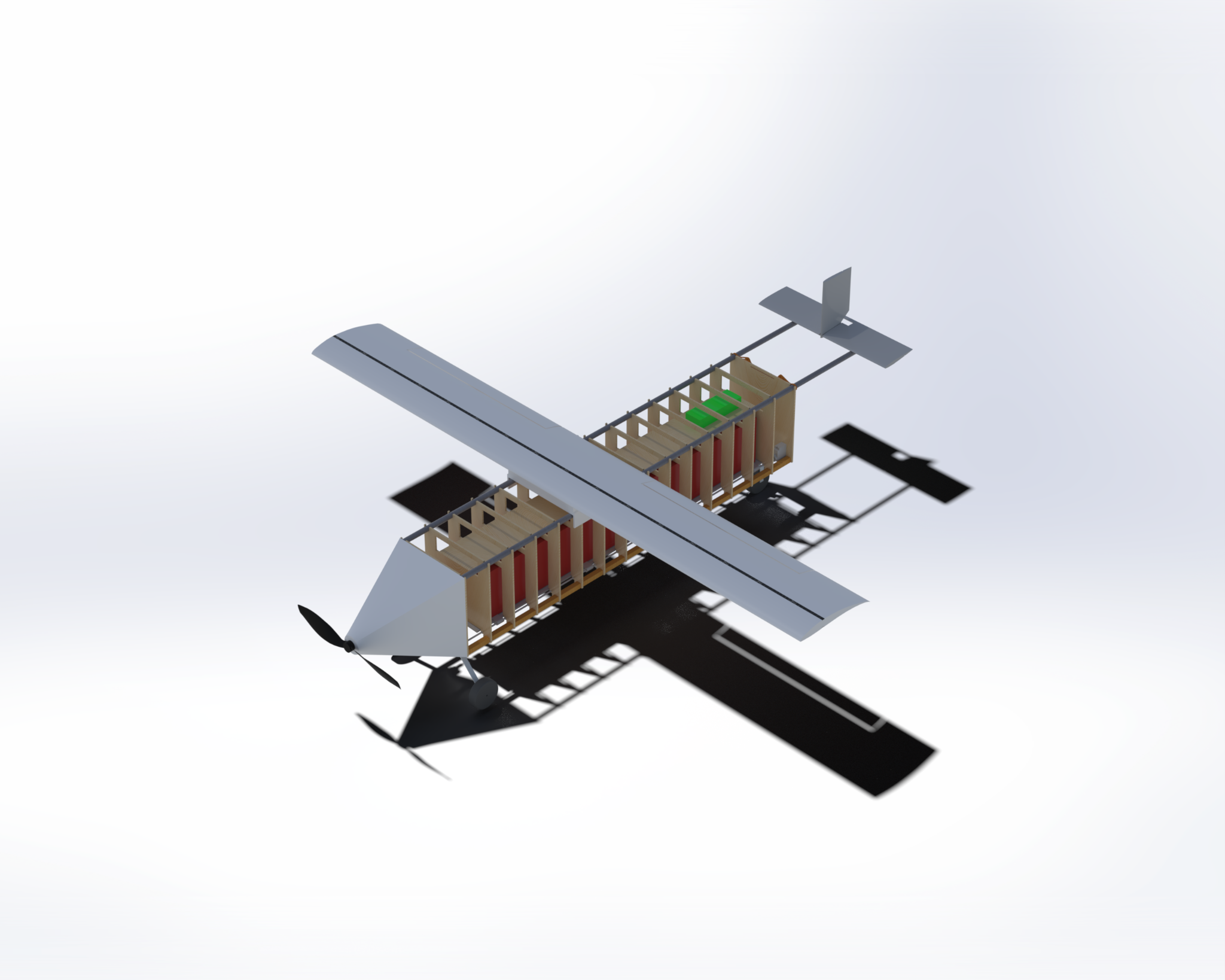

Design-Build-Fly (DBF)

Present

Senior Design Capstone

Experience

Design Build Fly (DBF)

UCSD ITS

Projects

Executive Summary

Design Optimization & Analysis

Key Engineering Decisions

Technical Specifications

BWB Airliner Concept "Manta"

Executive Summary

Problem Framing

Methods & Tools

Key Results

Wing Spar Analysis

Executive Summary

Objectives & Problem Framing

Methods & Tools

Wind Tunnel Testing

Executive Summary

Hardware & Build

Hydrodynamic Analysis

Technical Specifications

SeaGlide AUV

Executive Summary

Scope

4-Piston Engine CAD

Executive Summary

Heat Transfer Work

Acoustics Work

Lab Operations

Aspirations

Contact
